1. Maintenance-free analyzer
2. Integrated barcode reader and printer
3. Single-use cartridge
4. Including ionized magnesium (iMg 2+ )

Electrolyte Analyzer

• Maintenance-free: No fluid pipe inside the device, no reagent pack required
• Easy to use: Convenient bedside testing with whole blood
• Fast, Lab-quality results: Provides accurate results in approximately 5 minutes, auto-calibration before each test
• Portable: Size: 240 × 120 × 110 mm Weight: 1.5 ± 0.2 kg (including battery)
• Including ionized magnesium (iMg2+): Used for hypomagnesemia and hypermagnesemia monitoring.

Electrolyte Cartridge

1. 1.     5 in 1" cartridge: Concurrently tests 5 parameters: K+, Na+, Cl- , iCa2+ and iMg2+, addressing more comprehensive clinical needs.

1. 2.    No risk of sample contamination: Dry chemistry method, single-use cartridge eliminates the risk of contamination.

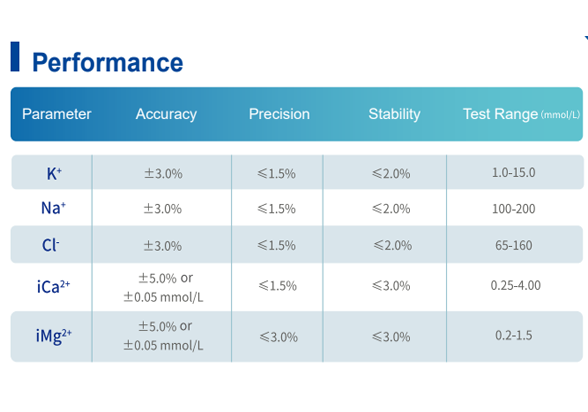

Parameters

Potassium (K+ ):Even small changes in extracellular K+ concentration will have significant effects on the transmembrane potential gradient, and thereby the function of neuromuscular and cardiac tissues. [1]

Sodium (Na+): As the most abundant extracellular fluid solute, Na+ is the major determinant of its osmolality and thereby the principal determinant of water distribution between the intracellular and extracellular compartments. [2]This highlights the role of Na+ in the maintenance of blood volume and thereby blood pressure.

Chloride (Cl- ): As the second most abundant extracellular fluid ion after Na+, and the most abundant extracellular fluid anion, Cl– is essential for the maintenance of normal plasma osmolarity.[3]

Ionized Calcium (iCa2+): The maintenance of iCa2+ within normal limits is not only important for the structural integrity of bones but for a range of physiological functions, including hemostasis, cardiac and skeletal muscle cell contraction, neuromuscular transmission and action of many hormones (calcium-signaling).[4]

Ionized magnesium (iMg2+):iMg2+ relates to the stabilization of intracellular potassium, which ensures the normal functionality of myocardium, nerve and muscle.

{FOR MORE INFORMATION PLEASE DOWNLOAD CATALOG}
